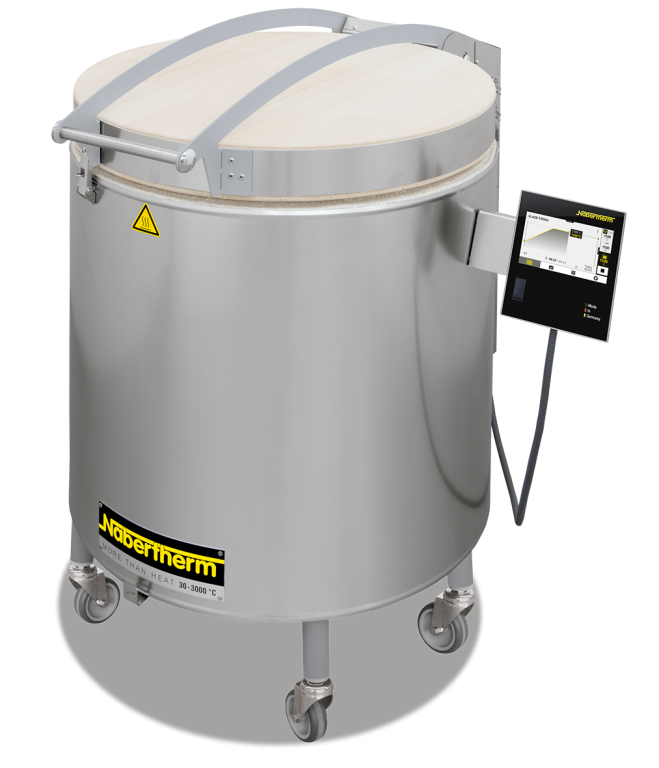

Ceramic kiln Nabertherm Top60 top-loading

The compact Nabertherm Top 60 top-loading kiln is the ideal solution for hobby ceramics, small to medium workshops. Thanks to its higher volume and professional design features, it offers rapid heating, precise temperature control, and reliable firing results even with frequent use.

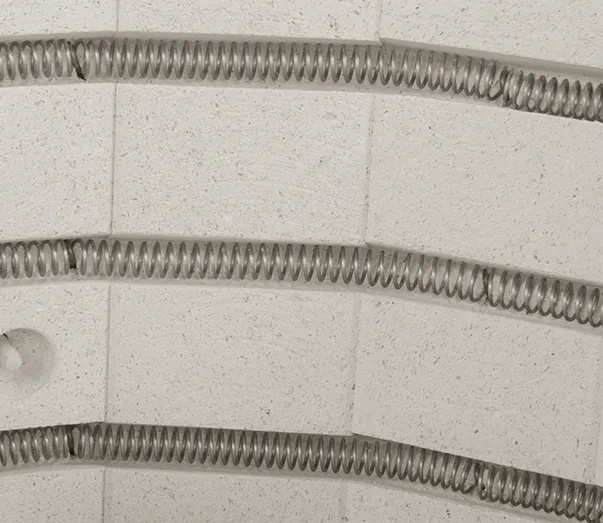

This is a 60-liter model, particularly suitable for firing small to medium-sized ceramic products, glazes, or porcelain painting. The kiln is equipped with heating coils housed in grooves, which are protected against mechanical damage and simultaneously ensure even heat distribution throughout the chamber. Multi-layer insulation made of refractory materials, along with energy-efficient rear insulation, allows for high temperatures to be reached with relatively low power consumption while maintaining a low external casing temperature. The kiln casing is made of structured stainless steel, ensuring not only a modern look but also high durability and a long service life.

• Maximum temperature up to 1320 °C – suitable for stoneware and porcelain
• Wheels for quick and easy transport
• Uniform heating around the entire circumference – stable and reproducible results
• Simple operation with a touch controller
• Made in Germany – emphasis on quality and long service life

Technical parameters:

• Max. temperature: 1320 °C
• Volume: 60 l
• Internal dimensions: Ø 410 mm × height 450 mm
• Power consumption: approx. 3.6 kW
• Power supply: 230 V (1 phase)
• Weight: approx. 74 kg


Control and Operation

The kiln is equipped as standard with the modern AC590 controller, which offers:

• colour touchscreen
• option to save firing programs and segments
• delayed start
• precise temperature control
• multiple user levels (suitable for workshops and schools)
• in conjunction with the MyNabertherm app, the kiln can be monitored online and the firing process tracked from anywhere.
